Add StorONE Object Store to ProxMox Backup Server as a datastore

Summary

This document explains how to use a StorONE Object Store with a ProxMox Backup Server as a datastore for backups

Assumptions

This document assumes you already know how to create an Object Store on the StorONE and you know you keys, secrets, and ports.

S3 Endpoint

The ProxMox Backup Server will only access S3 endpoints that use HTTPS. Ensure that SSL is enabled on the Object Store that was created. Since the StorONE uses self-signed certificates we need to get the fingerprint from the StorONE to properly set the endpoint.

In order to get the fingerprint you can use the openssl executable from any box that has access to the Object Store's floating up like this:

openssl s_client -connect <storone floating IP>:<object store port> -servername <s1 floating ip> </dev/null 2>/dev/null | openssl x509 -noout -sha256 -fingerprint

Example of the command with the output:

openssl s_client -connect 10.10.50.106:9920 -servername 10.10.50.106 </dev/null 2>/dev/null | openssl x509 -noout -sha256 -fingerprint
sha256 Fingerprint=63:A9:C0:CE:3C:5F:3A:75:E3:65:6B:F4:4D:93:51:97:74:AB:0D:0C:56:A9:23:EC:C4:ED:B6:E4:87:EC:CC:5E

Make a Bucket

while you are on your linux box getting the fingerprint, you can also use the awscli to create a bucket to use with this process:

aws --endpoint-url https://<s1 floating ip>:<object port> s3 mb s3://newbucket --no-verify-ssl

Example:

aws --endpoint-url https://10.10.50.106:9920 s3 mb s3://newbucket --no-verify-ssl

aws --endpoint-url https://10.10.50.106:9920 s3 ls --no-verify-ssl
urllib3/connectionpool.py:1097: InsecureRequestWarning: Unverified HTTPS request is being made to host '10.10.50.106'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
2026-09-18 15:45:34 backupbucket
2026-09-18 21:31:57 newbucket
2026-09-18 15:50:31 pbs
2026-09-18 15:53:00 under

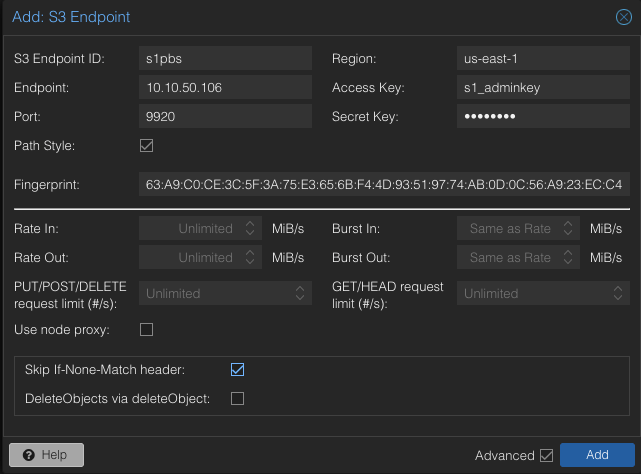

On the ProxMox Backup Server add a new S3 Endpoint:

S3 Endpoint ID: Whatever you want to name the Endpoint in the ProxMox Backup Server

Endpoint: The floating IP of the StorONE

Port: The port that you applied to the Object Store on the S1

Path Style: make sure this is checked

Region: arbitrary but you can put us-east-1 or us-west-1

Fingerprint: the output you got from the openssl command before

Skip If-Non-Match header: make sure this is checked.

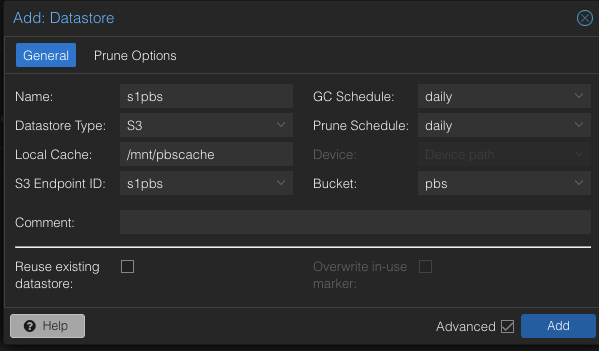

Add a Datastore

Name: The name you want the datastore to have

Datastore Type: S3

Local Cache: the absolute path of a local directory

S3 Endpoint ID: the dropdown should give you the endpoint you added earlier

Bucket: The buckets should be available in the dropdown

Your S3 Datastore should be created

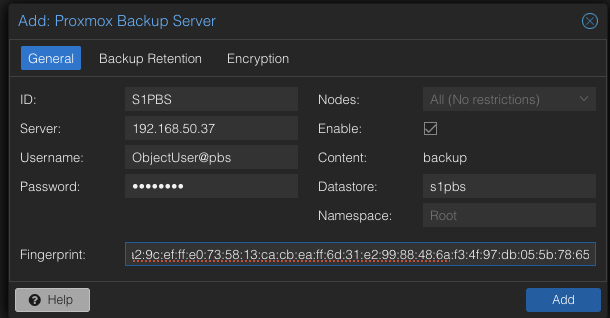

Note for when adding to your ProxMox Server Storage:

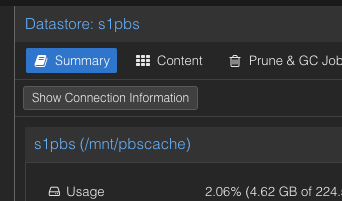

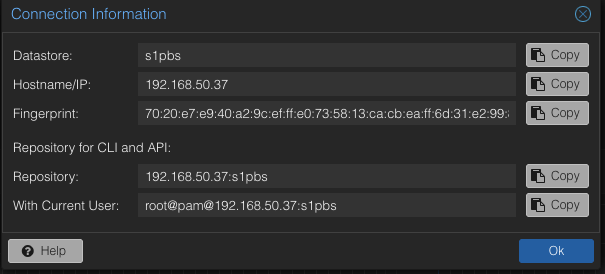

When adding the ProxMox Backup Server to the PVE Server you need the fingerprint and user information for the datastore.

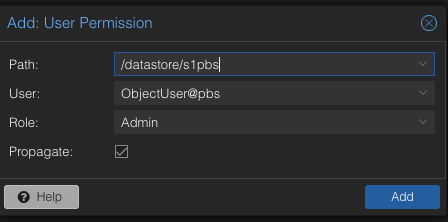

On the ProxMox Backup Server ensure your users have permission to access the datastore. Go to Configuration -> Access Control. Ensure you have a user and it has the appropriate permissions. Under Access Control go to Permissions and Add:
