Windows getting started guide

This guide is for Microsoft Windows Server 2012 and above. This guide was specifically tested with Windows Server 2019, Windows Hyper-V Server 2022, and Windows Server 2022.

Introduction

This guide provides the recommended best practices for using the StorONE with Windows Server for iSCSi.  This guide includes network best practices for physical data ports connecting to the S1, as well as basic troubleshooting steps.

Physical switch port recommendations

iSCSI network redundancy recommendations

For iSCSI networks, StorONE recommends using multiple network interfaces for each application host and StorONE array controller, dedicated to iSCSI traffic. Switches for iSCSI data traffic should be connected via an Inter-Switch Link (ISL), or equivalent manner to allow for proper networking and TCP connectivity. If you are using multiple subnets for iSCSI traffic, then each subnet must be contained within the appropriate switch and VLAN configuration.

Network interfaces used for iSCSI should not be bonded or aggregated. iSCSI interfaces work best with multipathing IO (MPIO) software to aggregate paths, balance load, and mitigate lost connections between application servers and StorONE array controllers.

StorONE recommends a minimum of two interfaces per initiator server, and two iSCSI data connections per StorONE array controller. This allows for a total of four paths per controller for iSCSI data communication.

Spanning Tree

Spanning Tree Protocol (STP) is responsible for ensuring that there are no network loops in a bridged network by selectively disabling network links and ensuring that there is only a single active path between any two network nodes. Loops can cause severe performance issues in your network with unnecessary packet forwarding, eventually leading to a saturated network.

StorONE recommends setting all switch ports used by initiator hosts and array controller hosts as either RSTP edge ports or Cisco portfast. This configures the ports to immediately transition to the forwarding state, skipping the listening and learning states that do not forward traffic. This allows for the best possible transition for floating IP addresses during node failover.

MTU (jumbo frames)

For iSCSI storage traffic, StorONE recommends increasing the maximum transmission unit (MTU) to 9000, commonly referred to as jumbo frames. You must make MTU changes the physical switch ports as well as the Windows network adapters that are used for iSCSi networks.

In the S1 Terminal User Interface (TUI) used for array setup, you must also configure the data interfaces to set the MTU to 9000:

Verify network settings

To verify that the switch interfaces are correctly configured between the application host and the StorONE storage array, use the ping command from the Windows command prompt or PowerShell. This verifies basic network connectivity between the host and StorONE array, and also verifies the jumbo frame settings.

First, verify basic connectivity:

ping -S <source_data_interface_ip> <destination_StorONE_interface_ip>

If you do not see replies from the destination, identify and correct any network issues before continuing.

To verify jumbo frames are working correctly, use the following command:

ping -S <source_data_interface_ip> -f -l 8900 <destination_StorONE_interface_ip>

The -f flag sets the do-not-fragment (DF) bit, and the -l flag sets the packet length. If you see a response similar to Packet needs to be fragmented but DF set, then jumbo frames are not allowed somewhere in the path. Check the switch port configurations as well as the source and destination network interface settings.

Fibre Channel initiator hosts and zoning

For Fibre Channel (FC) networks or fabrics, StorONE recommends using multiple Host Bus Adapters (HBAs) for each application host and StorONE array controller, dedicated to FC traffic. StorONE recommends a minimum of two physical adapters per initiator server, and two FC HBAs per StorONE array controller. This allows for a total of four paths per controller for FC data communication.

Multipath I/O (MPIO) software is required to manage the multiple paths to the StorONE block volume. MPIO provides a mechanism for managing multiple paths to storage, including load balancing and failover behavior.

Aliases: StorONE recommends creating aliases for all host and StorONE Port World Wide Names (pWWNs) to facilitate easy zone creation and tracking from the nameserver. Node World Wide Names (NWWNs) should not be used when zoning with or two the StorONE array.


Zoning: StorONE recommends no more than one HOST initiator pWWN per zone and no more than one array controller per zone. For each host initiator pWWN, there should be at least two zones per fabric connecting the StorONE array to the host.

A Minimum zoning example for a StorONE HA cluster:

Fabric A
Zone 1 A
Fabric B
Zone 1 B
Initiator
Host initiator pWWN A
Initiator
Host Initiator pWWN B
Target
StorONE Controller 1 pWWN A
Target StorONE Controller 1 pWWN B
Target
StorONE Controller 2 pWWN A
Target StorONE Controller 2 pWWN B

SMB network redundancy

For SMB networks it is recommended to have multiple network adapters dedicated for SMB traffic. StorONE recommends using Link Aggregation Control Protocol (LACP) for interface bonding and redundancy. LACP allows for one or more physical interfaces to be aggregated together for combined throughput, and at the same time can suffer the loss of one or more links of the interface group without a total loss of connectivity to the array.

StorONE recommends an HA pair of arrays if all SMB connections are lost between the NAS server and host application servers the array will perform a failover to transition the file services to the other node in the HA cluster.

Spanning Tree

Spanning Tree Protocol (STP) is responsible for ensuring that there are no network loops in a bridged network by disabling network links and ensuring that there is only a single active path between any two network nodes  If there are loops, this can have severe performance impacts on your network with unnecessary forwarding of packets taking place, eventually leading to a saturated network

StorONE recommends setting the switch ports connecting to StorONE storage ports as either RSTP edge ports or Cisco portfast. This means that ports immediately transition their forwarding state to active and are not held up by STP route calculations.  This allows for the best possible transition for floating IP addresses during node failover.

MTU (jumbo frames)

For storage traffic it is recommended to increase the MTU setting to 9000 MTU.  This must be done on the physical switch ports as well as the windows network adapters that are used for the SMB networks.

In the S1 Text User Interface (TUI) used for array setup, the ports configured for data traffic must also be instructed to use 9000 MTU



Verify network settings

To verify that the switch interfaces are correctly configured between the application host and the StorONE storage array, use the ping command from the Windows command prompt or PowerShell. This verifies basic network connectivity between the host and StorONE array, and also verifies the jumbo frame settings.

First, verify basic connectivity:

ping -S <source_data_interface_ip> <destination_StorONE_interface_ip>

If you do not see replies from the destination, identify and correct any network issues before continuing.

To verify jumbo frames are working correctly, use the following command:

ping -S <source_data_interface_ip> -f -l 8900 <destination_StorONE_interface_ip>

The -f flag sets the do-not-fragment (DF) bit, and the -l flag sets the packet length. If you see a response similar to Packet needs to be fragmented but DF set, then jumbo frames are not allowed somewhere in the path. Check the switch port configurations as well as the source and destination network interface settings.

Multipath I/O (MPIO) installation (iSCSI and FC only)

To install Windows MPIO:

  1. From the Windows menu, search for and run Server Manager.
  2. Click Manage, and then select Add Roles and Features.

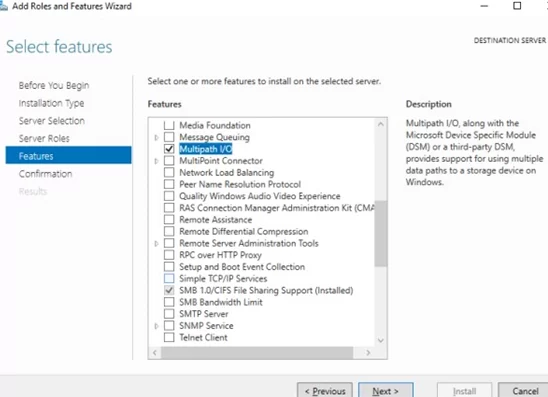

  3. Find and select MultiPath I/O from the features list:
  4. Complete the prompts to finish MPIO installation, and reboot the server.
  5. After the reboot completes, open Server Manager, select Tools, and then MPIO.
  6. (FC only): Verify the STORONE S1 devices are present in the MPIO Devices tab. For iSCSI devices, continue:

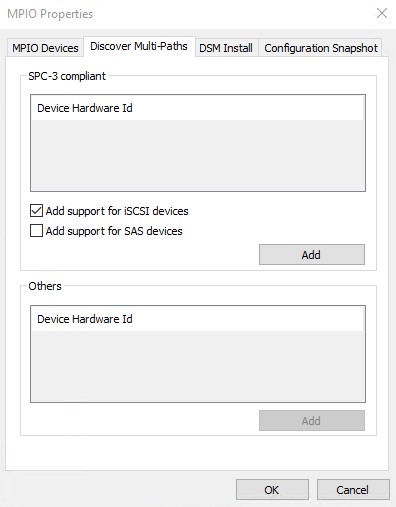

  7. Select the Discover Multi-Paths tab, and then check the Add support for iSCSI devices checkbox and click Add:

Joining the StorONE array to an Active Directory (AD) domain

If you plan to use AD to control share access to the StorONE shares, we recommend joining the array to the Active Directory (AD) domain. The table below contains the port requirements for using Active Directory and Lightweight Driectory Access Protocol (LDAP)

Requirements:

  • A dedicated floating IP address for file based traffic must be created on the StorONE array, this can be done via the array CLI or UI. This should be different than object or replication floating IP addresses.
  • A NAS server must be created on the StorONE array using the dedicated floating IP for file based traffic.
  • An administrator or domain administrator username and password to join the domain. This is a one time use to create the computer account for the StorONE NAS server in the domain controller, and the credentials are not cached or otherwise retained by the array.
  • Forward and reverse DNS records must be in place for the AD domain controller, DNS servers, and the StorONE array controllers.
  • Port requirements - The following ports need to be available for a successful AD join:

Port
Inbound
Outbound
Location
Useage
53
YES
YES
DNS server
DNS
53
YES
YES
Array controller maagement IP Addresses
DNS
88
YES
YES
Domain Controller(s)
Kerberos
88
YES
YES
Array controller management IP addresses
Kerberos
123
YES
YES
Domain Controller, NTP server for Array controllers
NTP
123
YES
YES
Array Controller management IP addresses
NTP
389
YES
YES
Domain Controller(s)
LDAP / AD
389
YES
YES
Array controller management IP addresses
LDAP / AD

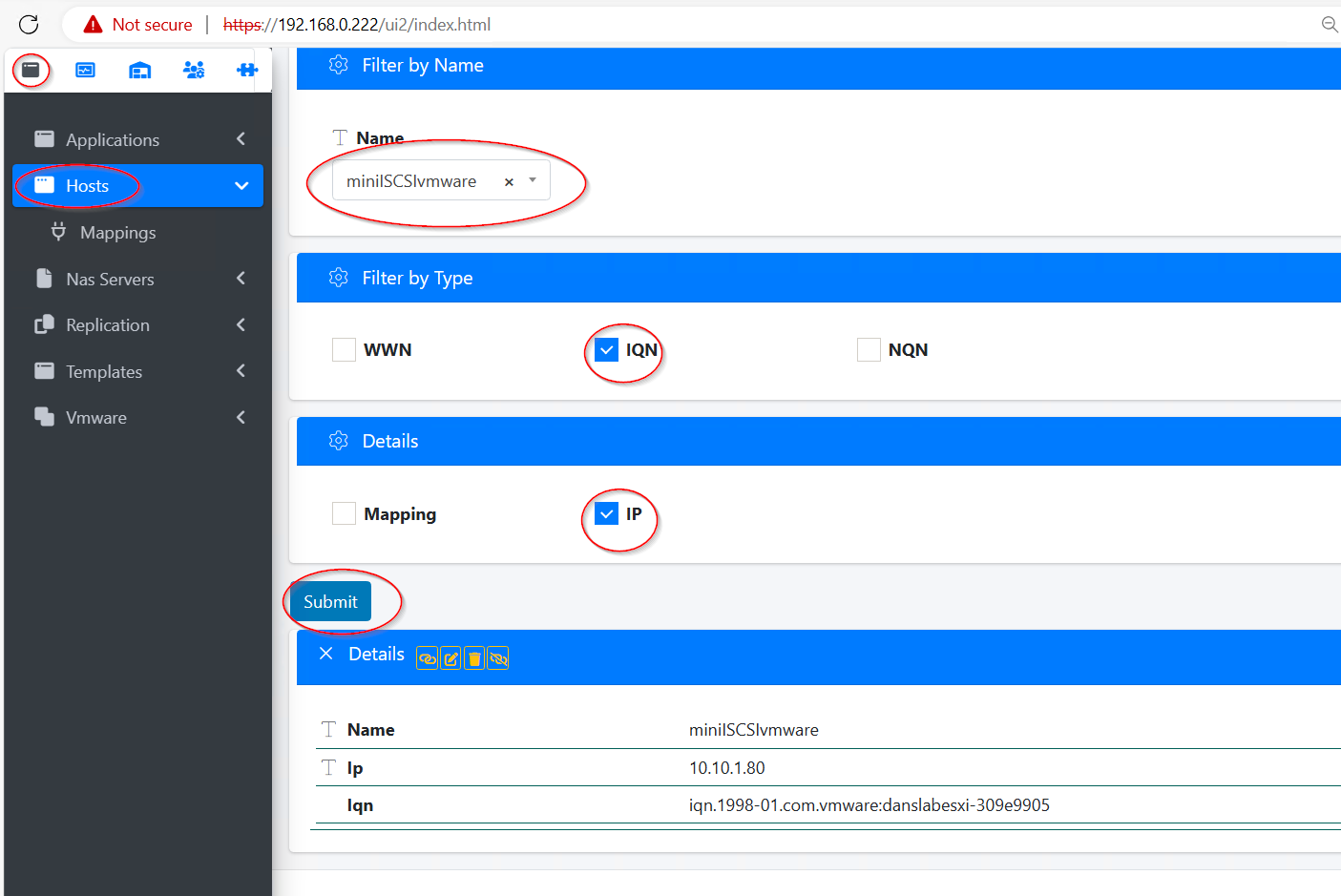

Creating a NAS server and Floating IP

To create a NAS server and floating IP from the StorONE array GUI:

  1. Log into the array

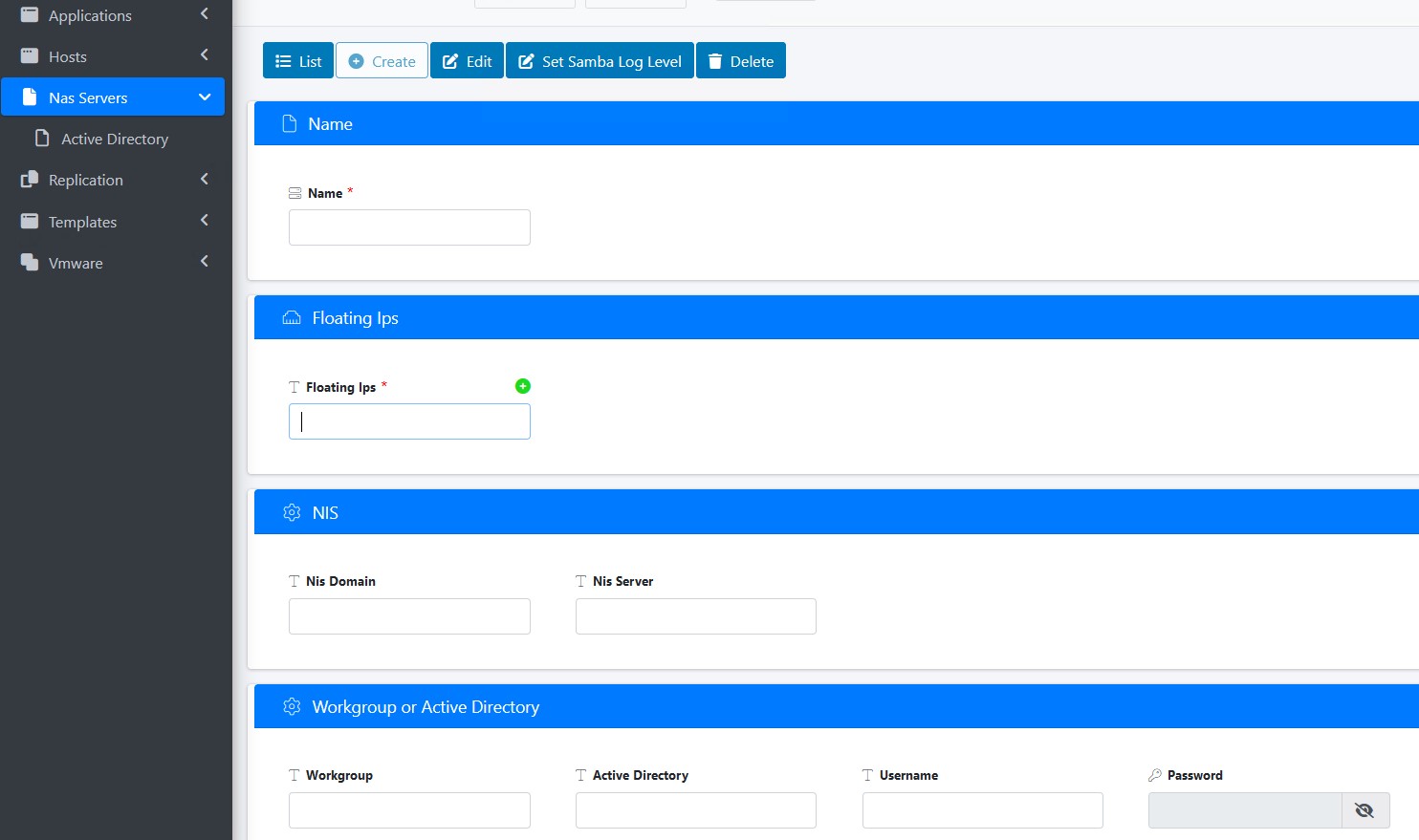

  2. Select Applications and then Nas Serversnas_1.jpg
  3. Provide a name for your NAS server (it is recommended to keep the name less than 15 characters)

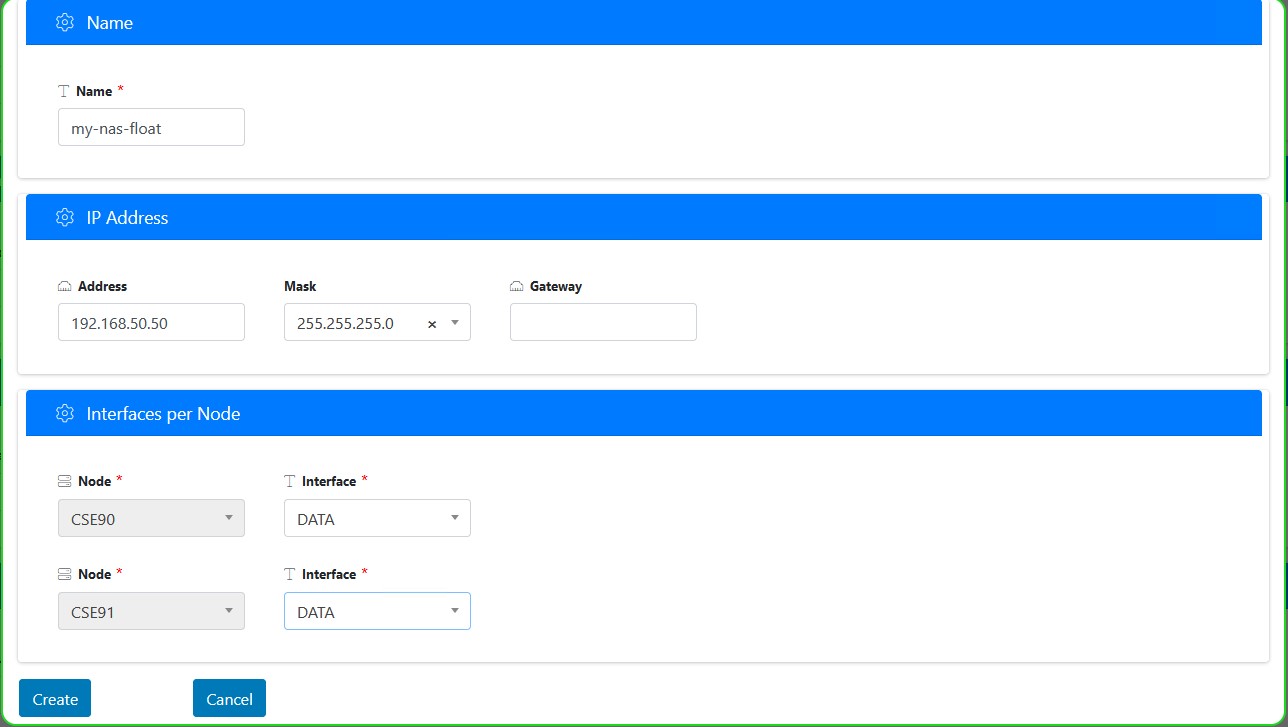

  4. Click on the "+" sign for Floating IPs. Enter the IP information for your Floating IP address and subnet, and make sure the correct DATA interface is selected for each Array controller in the cluster. Click Createnas_2.jpg

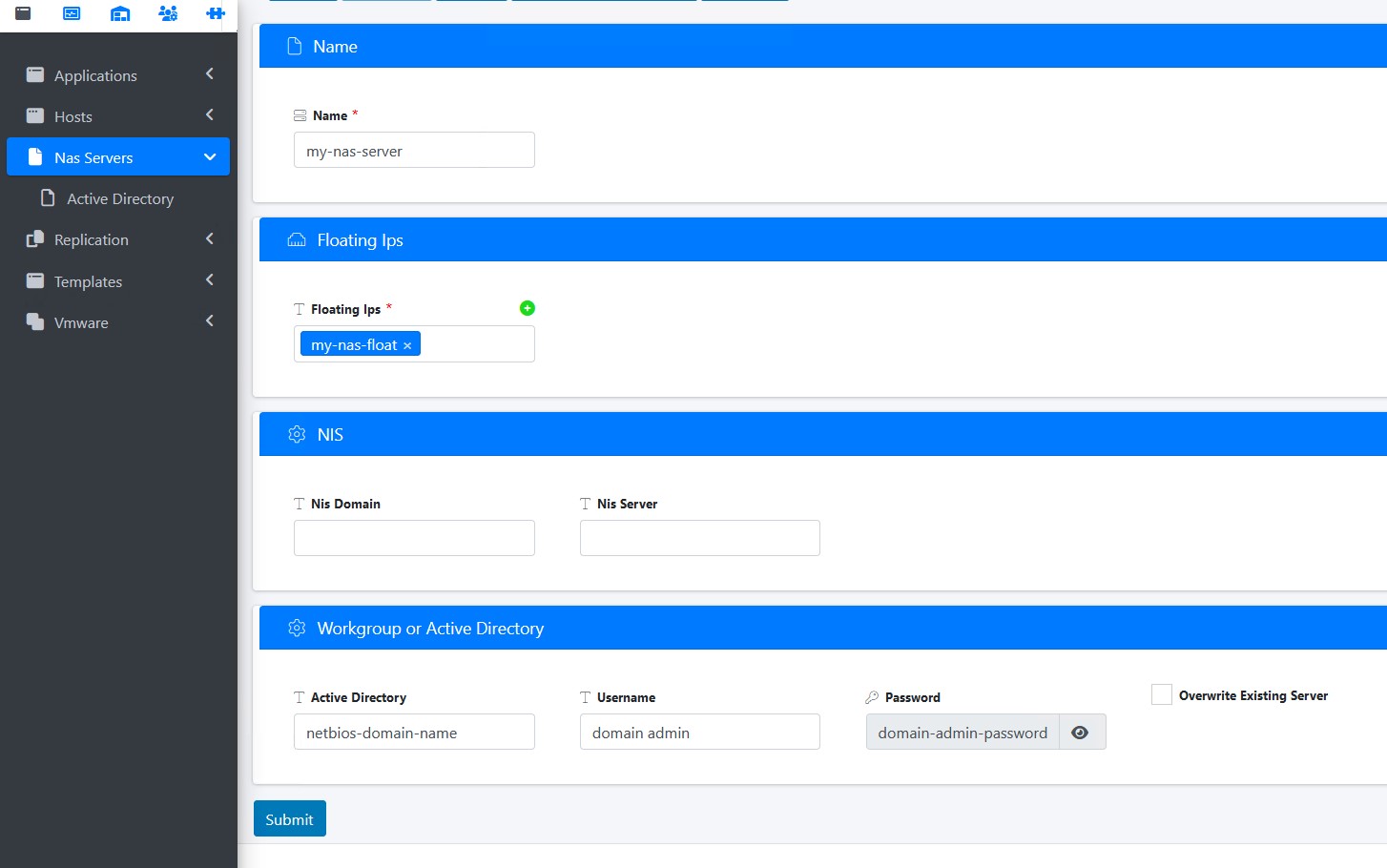

  5. Make sure the floating IP created is now used for the NAS server. Then enter the correct Net Bios or short domain name, and a username and password for a Domain admin then click Submit.nas_3.jpg

Setting Permissions for a StorONE SMB share as a Network Drive

To map a StorONE shared SMB volume tp a windows host. For a simple SMB connection a user will need to be configured on the array and allowed access to the StorONE SMB share. For AD credentials the StorONE array will need to be joined to the AD domain first and AD users will need to be added to the share.

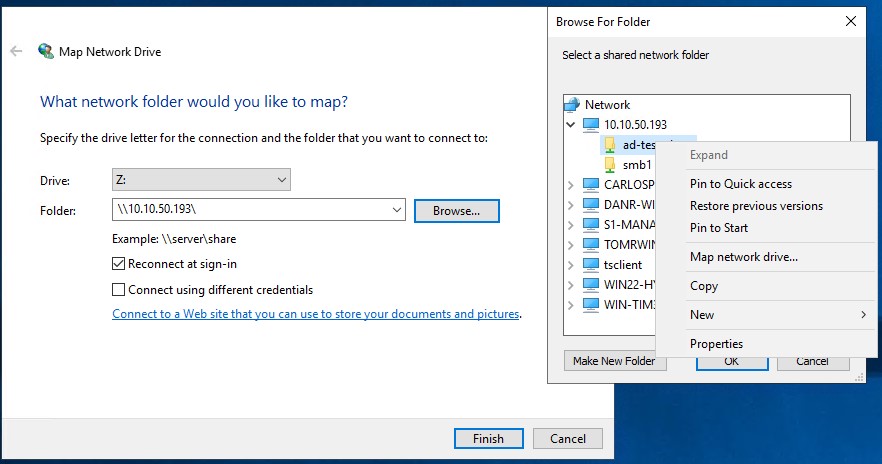

  1. Open "This PC" select the computer tab and then select "Map network drive"
  2. Select an available drive letter for the share to be mapped to on this server.
  3. For the first time connecting to the share, enter the floating IP for your StorONE and click the browse button
  4. Select the share from the StorONE floating IP right click and select Propertiesad_1.jpg

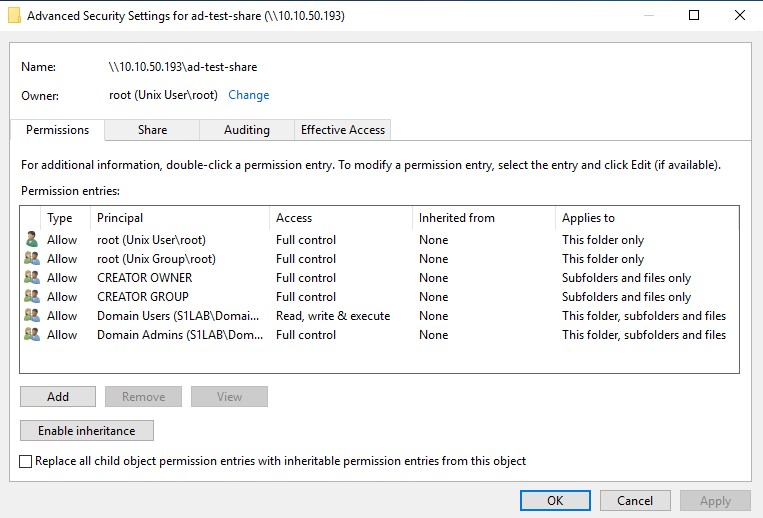

  5. Select the "Security" Tab then click Advanced

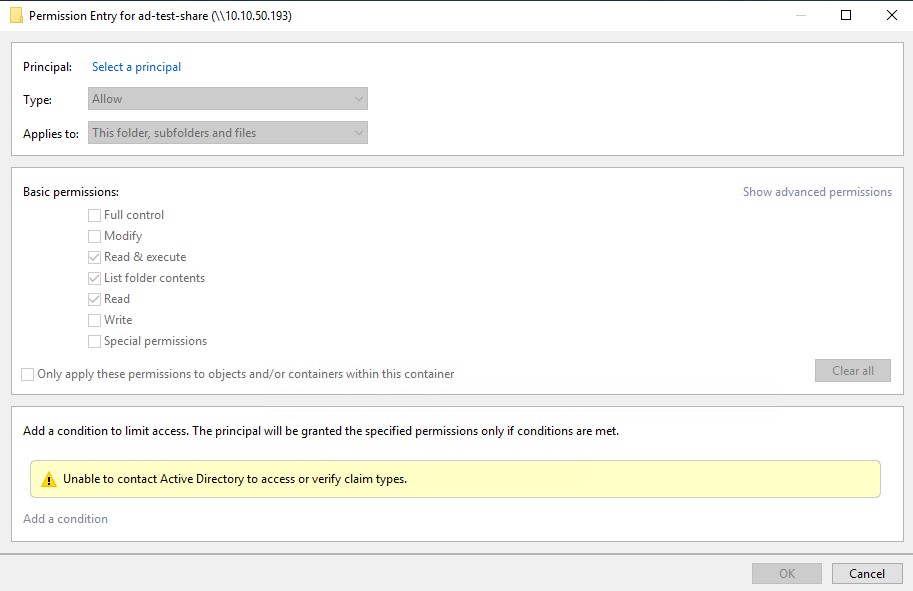

  6. From the Permissions tab click Addad_5.jpg

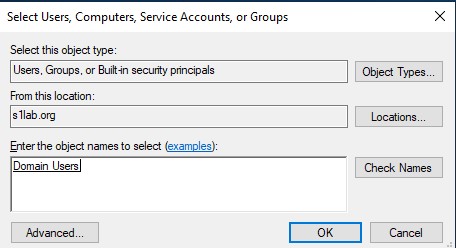

  7. CLick the link for "Select a principal" and enter your ad group and "check names" to verify. Repeat entering names and selecting "Check Names" until all AD groups are enteredad_6.jpgad_3.jpg

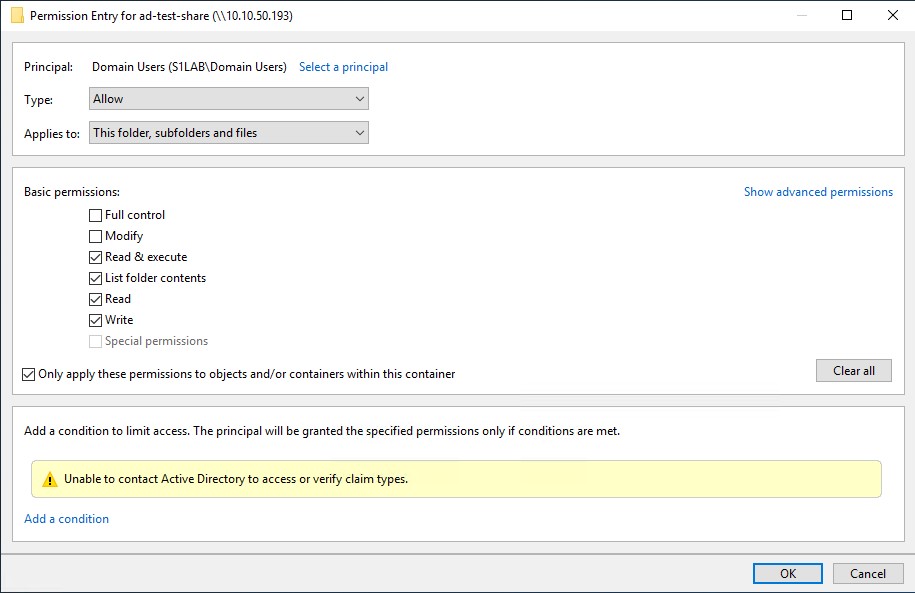

  8. To set permissions for each added AD group on the share, from the Permissions tab select the group and click Edit, then set the desired permissions for that group. Repeat for each group added as needed.ad_9.jpg
  9. These steps can be repeated as needed for additional shares from the StorONE array.
  10. For creating folders and subfolders within the share, the permissions can be set directly from the folders and subfolders as desired.

Mapping a StorONE SMB share as a Network Drive

To map a StorONE shared SMB volume tp a windows host. For a simple SMB connection a user will need to be configured on the array and allowed access to the StorONE SMB share. For AD credentials the StorONE array will need to be joined to the AD domain first and AD users will need to be added to the share.

  1. Open "This PC" select the computer tab and then select "Map network drive"
  2. Select an available drive letter for the share to be mapped to on this server.

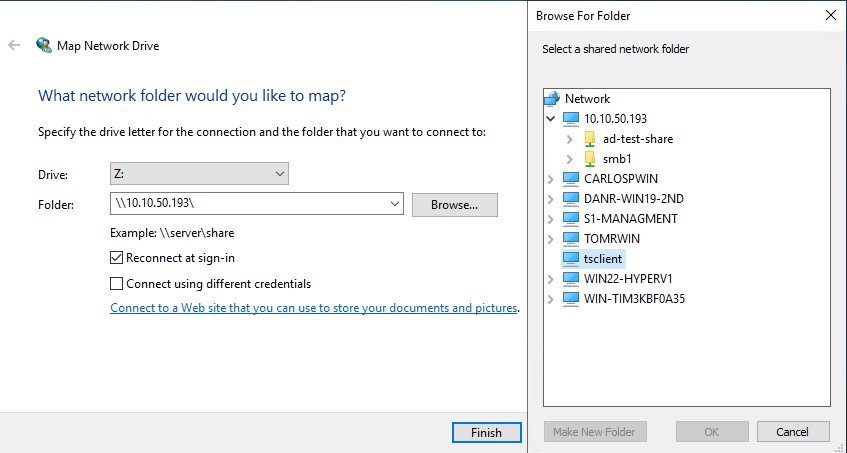

  3. For the first time connecting to the share, enter the floating IP for your StorONE and click the browse button.ad_10.jpg

Click finish to complete maping the share as a network drive with your AD credentials.

NOTE: If different credentials are needed to connect to the share, check that box and then click Finish to provide those credentials
